Description

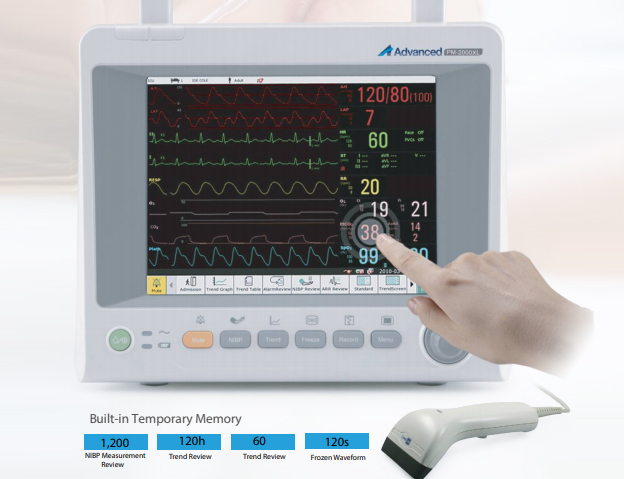

High Resolution Color TFT LCD Display.
Full touch-screen display, intuitive operation by clicking parameter or waveform.
Pacemaker detection.
Nurse Call function.
Defibrillation protection and synchronization.
Electrosurgical interference protection.
OxyCRG, assessment of respiration and circulation for neonates.
Extended Full-disclosure trend information.
Comprehensive alarm system.
Configurable parameters, options and functions.
ECG (3/5 Lead) with waveform and Heart Rate (HR).
Arrhythmia analysis & ST-segment analysis Respiration Rate (RR) with waveform.
SpO2 & Pulse Rate (PR).
SpO2 plethysmographic waveform.
SpO2 pulse tone modulation.
NIBP: SYS, DIA, MAP and Pulse Rate.
Two Temperature Channels.
Temperature Difference between two channels (TD).
Two IBP Channels with waveform (optional ) CO2 ( optional )
Sidestream/Mainstream End Tidal CO2 (EtCO2)
(optional)
Fraction of inspired carbon dioxide (FiCO2).
Air Way Respiration Rate (AwRR).
Bidirectional communication with Monitoring Central
Station (CMS-2000).
Wi-Fi (optional)
HL & communication via XML Files.
Barcode Scanner Support ( optional )
Thermal recorder (optional)
SD Card slot enables memory extension .
Bed-to-Bed viewing display.
Drug calculation and titration table.
USB & serial ports, VGA & analog outputs and RJ-45.
Built in rechargeable battery.
Power Supply: AC 100~240 Volts 50/60 Hz. Meets
IEC 60601-1+A2+A2 & IEC 60601-2+A1 Safety
Standards.
Meets FDA 510(k) requirements.
